Alpine S-A32F Review: Compact Class D Amp, Now Discontinued

The Alpine S-A32F is a compact Class D four-channel amplifier, and this Alpine S-A32F review concludes that it is a sound design worth buying only if you can find a new unit at a fair price, because Alpine has discontinued it. Alpine rates it at 55 watts RMS per channel at 4 ohms, 80 watts per channel at 2 ohms and 160 watts bridged at 4 ohms. Alpine’s next-generation S2-A36F is the closest current model.

As an Amazon Associate I earn from qualifying purchases; affiliate links on this page never affect the ratings.

Alpine S-A32F design and build

Alpine’s owner’s manual gives the S-A32F a footprint of 204 mm by 204 mm (about 8.0 in square), a height of 57.5 mm (2.3 in) and a weight of 1.9 kg (4 lb 3 oz). Some retailer listings show a 9 in width, so the manual figure is used here. A top-mounted LED shows the amplifier’s status: blue means normal, blinking red means high temperature, and solid red means a short, excess current, overheating or excess supply voltage.

Alpine says the amplifier gets hot at full output and should sit where air can circulate, such as a trunk. A dealer description of Alpine’s design says the protection circuit rolls output back as the amplifier heats up instead of shutting down. Power and speaker wires connect to set-screw terminals tightened with the supplied hex wrench, and the accessory list includes four M4 by 20 mm self-tapping screws.

S-A32F features and usability

The S-A32F takes its signal through RCA inputs with a LO/HI switch. LO suits RCA extension cables from a head unit, and HI suits a speaker-to-RCA conversion cable (sold separately) that taps a factory radio’s speaker outputs. Alpine lists input sensitivity of 0.2 V to 4.0 V on LO and 0.5 V to 10 V on HI. With a speaker-level connection, a remote-sensing function turns the amplifier on from the signal, though the manual warns that it may not work with every source. In that case, connect the remote lead to an accessory-power feed.

The crossover is simple. A mode switch selects off, high-pass or low-pass, and a knob sets the frequency from 50 Hz to 400 Hz at 12 dB per octave. The amplifier works as a four-, three- or two-channel unit. In three-channel use, the front pair drives speakers while the rear pair is bridged into one 4 ohm load for a subwoofer, and an optional RUX-KNOB.2 controller trims the bridged output by 0 to -20 dB. The bass EQ knob in the manual belongs to other models in the family, not to the S-A32F.

Alpine’s gain method for the S-A32F runs in this order:

1. Set the amplifier’s input gain to its minimum position.
2. Play a dynamic recording and raise the head unit volume until the output distorts, then lower it slightly.
3. Raise the amplifier gain until the sound distorts, then reduce it slightly until the sound is clean.

There is no RCA pass-through output on this model, because the manual lists pre-out jacks only for the S-A60M, and no clip lights or bass boost.

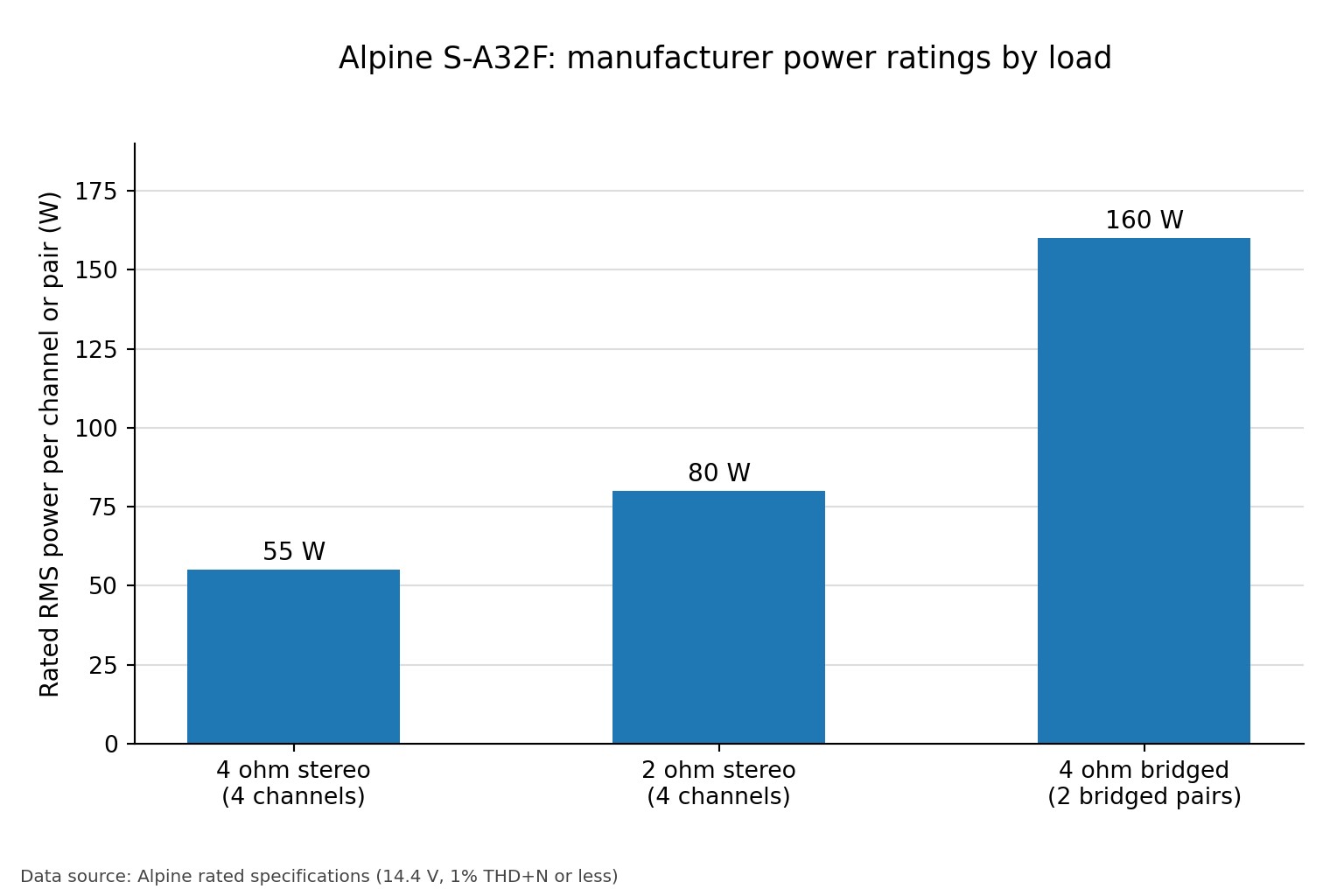

Alpine S-A32F rated power and calculated figures

Our research found no independent lab measurements for this model. The figures below come from Alpine’s ratings or from calculations based on them. The manual gives power at 14.4 V, and the CTA-2006 standard defines how in-vehicle amplifier power is measured, which keeps ratings at 14.4 V comparable between brands.

Mode	Rated RMS	Total rated (calculated)	Rated output voltage (calculated)
4 ohm stereo	55 W x 4	220 W	14.8 V RMS
2 ohm stereo	80 W x 4	320 W	12.7 V RMS
4 ohm bridged	160 W x 2	320 W	25.3 V RMS

The “320 Watts” in some listing titles is the 2 ohm total of four channels at 80 W, while the 4 ohm total is 220 W. Moving from 4 ohm to 2 ohm loads adds 1.6 dB of rated power, a small step, so the extra rating matters mainly for speakers that need the headroom. Output voltage is the square root of power times load.

Alpine’s other published figures are detailed. Distortion plus noise is 0.03 percent or lower at 10 W into 4 ohms and 0.05 percent or lower at 10 W into 2 ohms. At 50 W into 4 ohms it is 0.08 percent or lower, and at 75 W into 2 ohms it is 0.1 percent or lower. Signal-to-noise is above 83 dB at 1 W into 4 ohms and above 98 dB at 50 W (A-weighted). Frequency response is 10 Hz to 30 kHz (+0/-3 dB) and 20 Hz to 20 kHz (+0/-1 dB), and the damping factor is above 100 at 100 Hz. Alpine does not publish a current-draw figure, and retailer pages quote a peak “640 W” that the manual does not use.

Installing the S-A32F: wiring, fuse and fitment

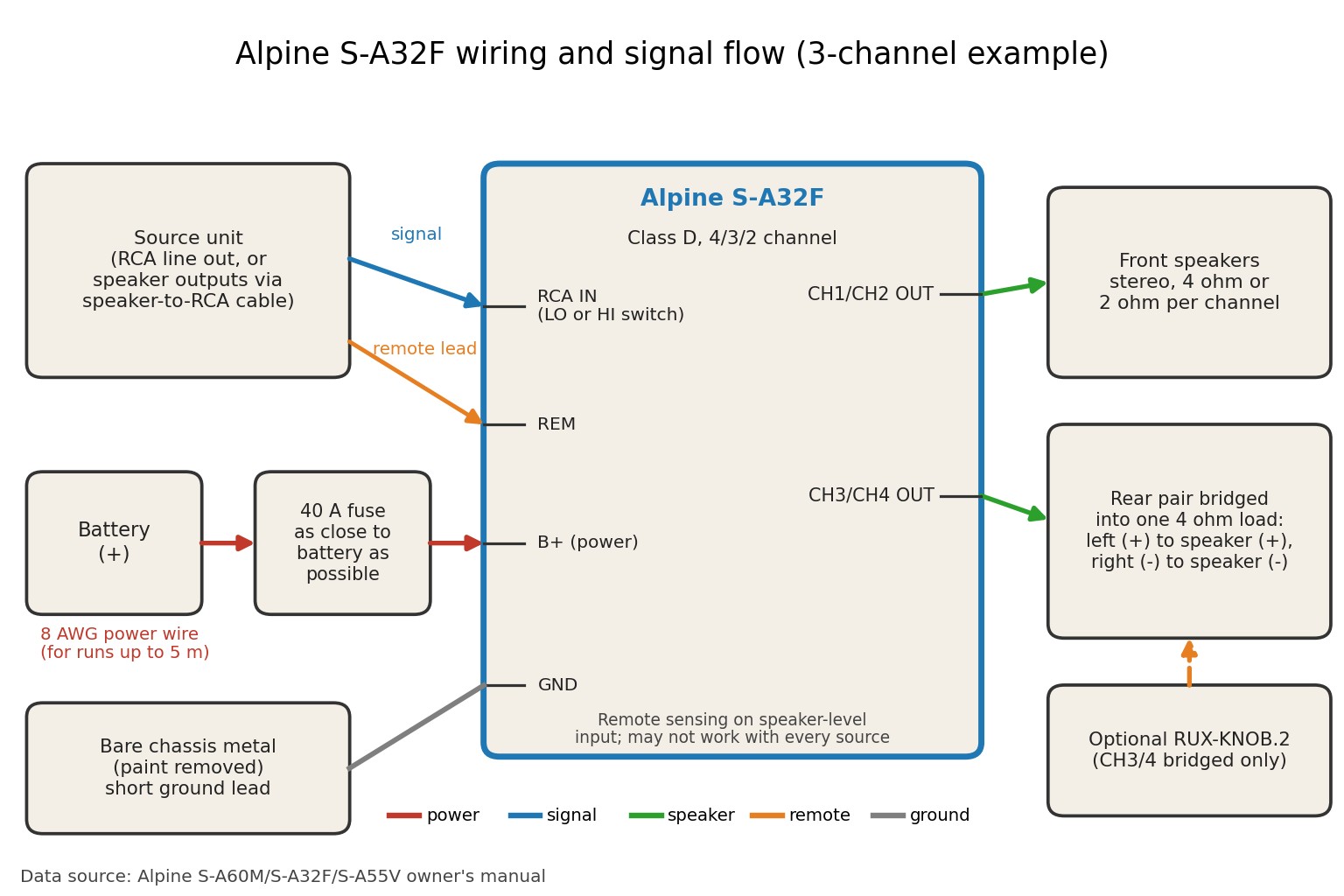

The manual specifies a 40 A fuse on the amplifier and an external fuse of at least 40 A placed as close as possible to the battery. For a power run of up to 5 m, Alpine specifies 8 AWG wire. It asks for a short ground lead on bare metal, the same ground point for all audio equipment, and cable routing at least 10 cm (4 in) from the vehicle harness. If power and ground cables exceed 1 m or several amplifiers share a feed, Alpine calls for a distribution block.

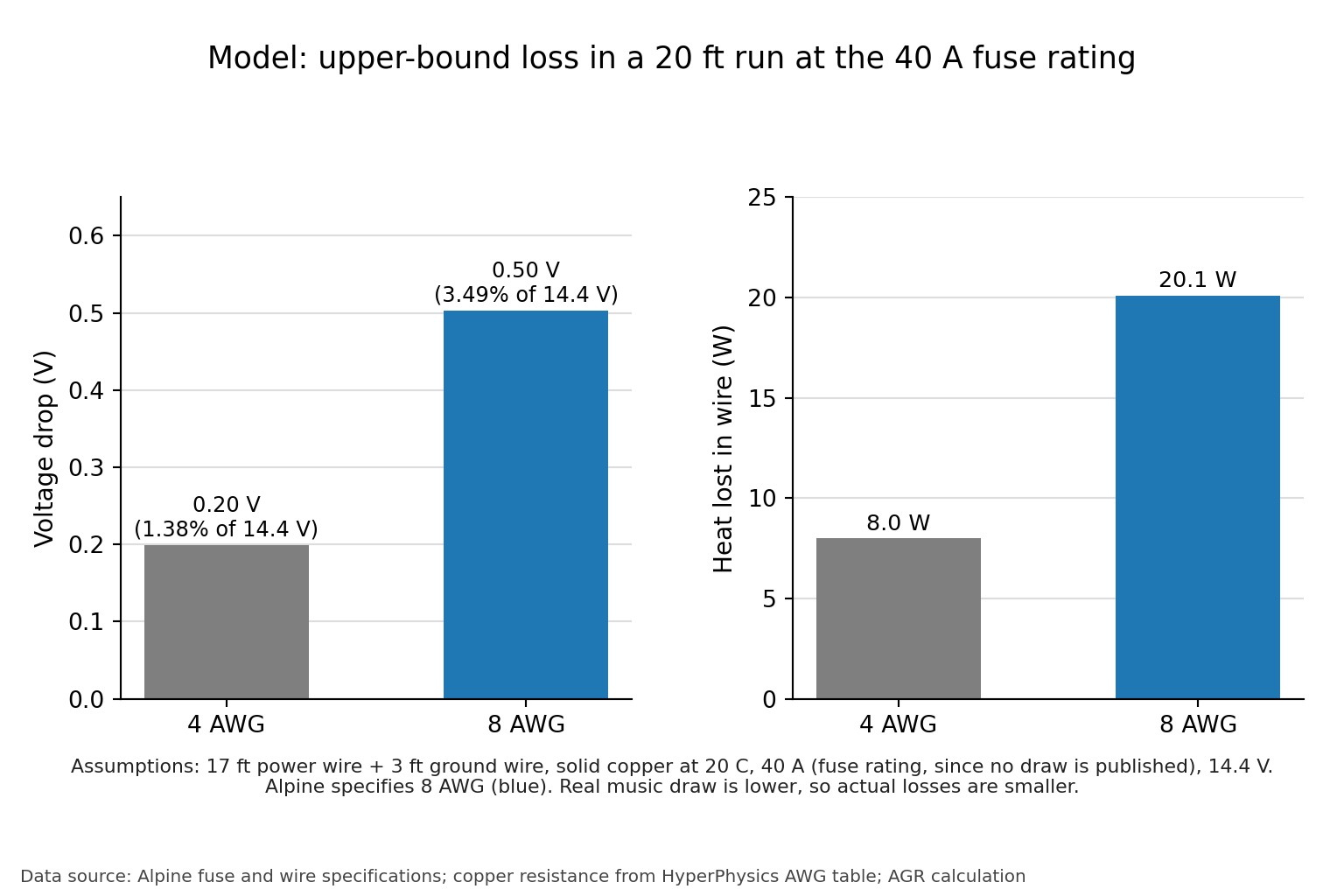

Because Alpine publishes no current-draw figure, a calculation can use only the 40 A fuse rating as an upper bound. Over a 17 ft power run and a 3 ft ground, that gives a drop of 0.50 V (3.5 percent of 14.4 V) in 8 AWG and 0.20 V (1.4 percent) in 4 AWG. The 8 AWG run would waste up to 20 W as heat against 8 W for 4 AWG. Real music draw is lower, so these are ceilings, and Alpine’s 8 AWG figure stays the guide.

Use this fitment checklist before buying:

• Speaker load: the amplifier is rated down to 2 ohms stereo and 4 ohms bridged. Two 4 ohm speakers wired in parallel on one channel present 2 ohms.
• Speaker power: at 4 ohms each channel is rated 55 W, so check that your speakers handle that figure comfortably.
• Bridging: connect the left positive terminal to the speaker positive and the right negative terminal to the speaker negative. Alpine says not to use the speaker negative terminals as a common lead or connect them to the chassis.
• Radio type: a factory radio without RCA outputs needs a speaker-to-RCA conversion cable and the HI setting. Front speaker outputs go to channels 1 and 2, and rear outputs go to channels 3 and 4.
• Fuse: Alpine calls for 40 A on the amplifier and at least 40 A at the battery.

How the Alpine S-A32F compares with rivals

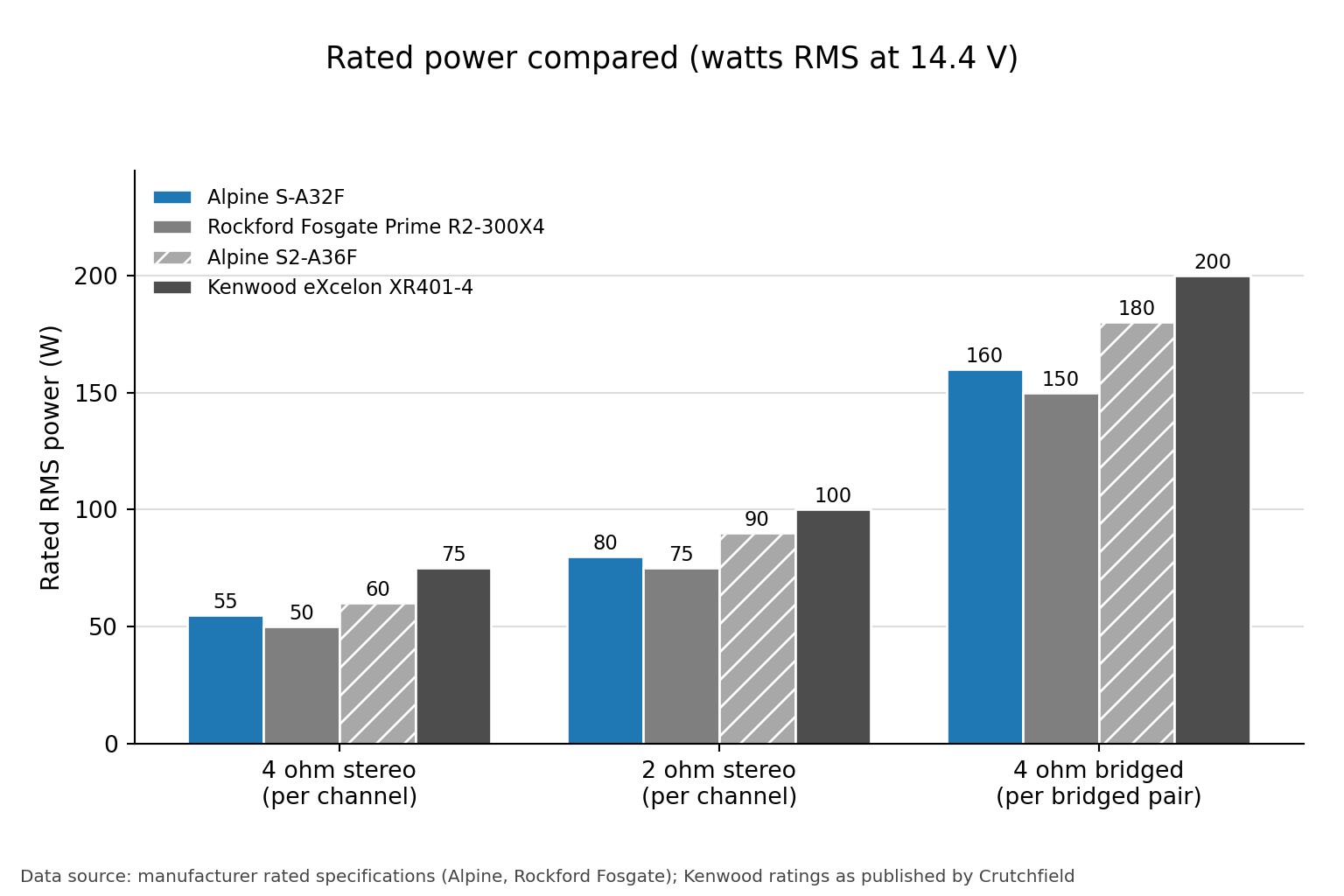

Three comparable four-channel Class D amplifiers are the Alpine S2-A36F, the Rockford Fosgate Prime R2-300X4 and the Kenwood eXcelon XR401-4. The Alpine S2-A36F is Alpine’s own next-generation model, the Rockford Fosgate rates slightly lower, and the Kenwood rates higher.

Specification	Alpine S-A32F	Alpine S2-A36F	Rockford Fosgate Prime R2-300X4	Kenwood eXcelon XR401-4
Amplifier class	Class D	Class D	Class D	Class D
RMS per channel, 4 ohm	55 W	60 W	50 W	75 W
RMS per channel, 2 ohm	80 W	90 W	75 W	100 W
Bridged, 4 ohm	160 W x 2	180 W x 2	150 W x 2	200 W x 2
High-level inputs	Yes, HI switch with conversion cable	Not confirmed	Yes, 4-pin Molex	No, preamp inputs only
Remote bass control	Optional RUX-KNOB.2	Optional RUX-KNOB.2 or RUX-H01	None	Not confirmed
Height	2.26 in	2.25 in	1.90 in	1.44 in
Footprint (calculated)	64.5 sq in	71.8 sq in	68.0 sq in	60.8 sq in

Alpine rates the S2-A36F higher at every load, adds a variable mid-bass EQ, a selectable remote turn-on switch and a Hi-Res Audio certification up to 40 kHz, and prices it at $299.95 USD. The S-A32F is rated above the Rockford Fosgate at every load, yet the Rockford Fosgate offers a dedicated Molex high-level input and an RCA pass-through. The Kenwood is rated highest and the smallest in footprint, but its preamp-only inputs rule it out for many factory-radio installs.

Who should buy the S-A32F and who should skip it

Buy it if you find a new unit at a fair price and want a compact amplifier for four door speakers or a three-channel system with a small subwoofer, especially from a factory radio. Its 8 in square footprint, 2 ohm stability and optional remote knob suit that job. Check the Alpine S-A32F listing on Amazon if that fits your plan.

Skip it if you want manufacturer support for a current model, since Alpine has discontinued it and the S2-A36F is the current choice. Skip it if you need an RCA pass-through, clip lights or a bass boost, and skip it if your speakers need more than 55 W each at 4 ohms. A bridged 160 W is also modest for a large subwoofer.

Alpine S-A32F price and pre-purchase checks

The current price of the S-A32F is not confirmed, because Alpine has discontinued it and no manufacturer or non-Amazon retailer price could be verified. Prices change often, so check the current listing. For context, Alpine prices the S2-A36F at $299.95 USD.

• Model name: confirm the “S-A32F” label, because the S2-A36F is a different amplifier with different ratings and dimensions.
• Condition: confirm that the unit is new and sealed, since open-box and refurbished units appear under the same model name.
• Seller: buy from an authorized Alpine dealer, because Alpine’s manual points buyers outside the United States and Canada to their dealer for warranty coverage.
• Box contents: Alpine’s manual lists four self-tapping screws and a hex wrench, and a dealer lists an installed 40 A fuse, the owner’s manual and a verification certificate.
• Warranty: dealer listings show one year, so confirm the terms with the seller before buying.

If you shop on Amazon, confirm the seller and the unit’s condition, and review the S-A32F seller details on Amazon before relying on any warranty.

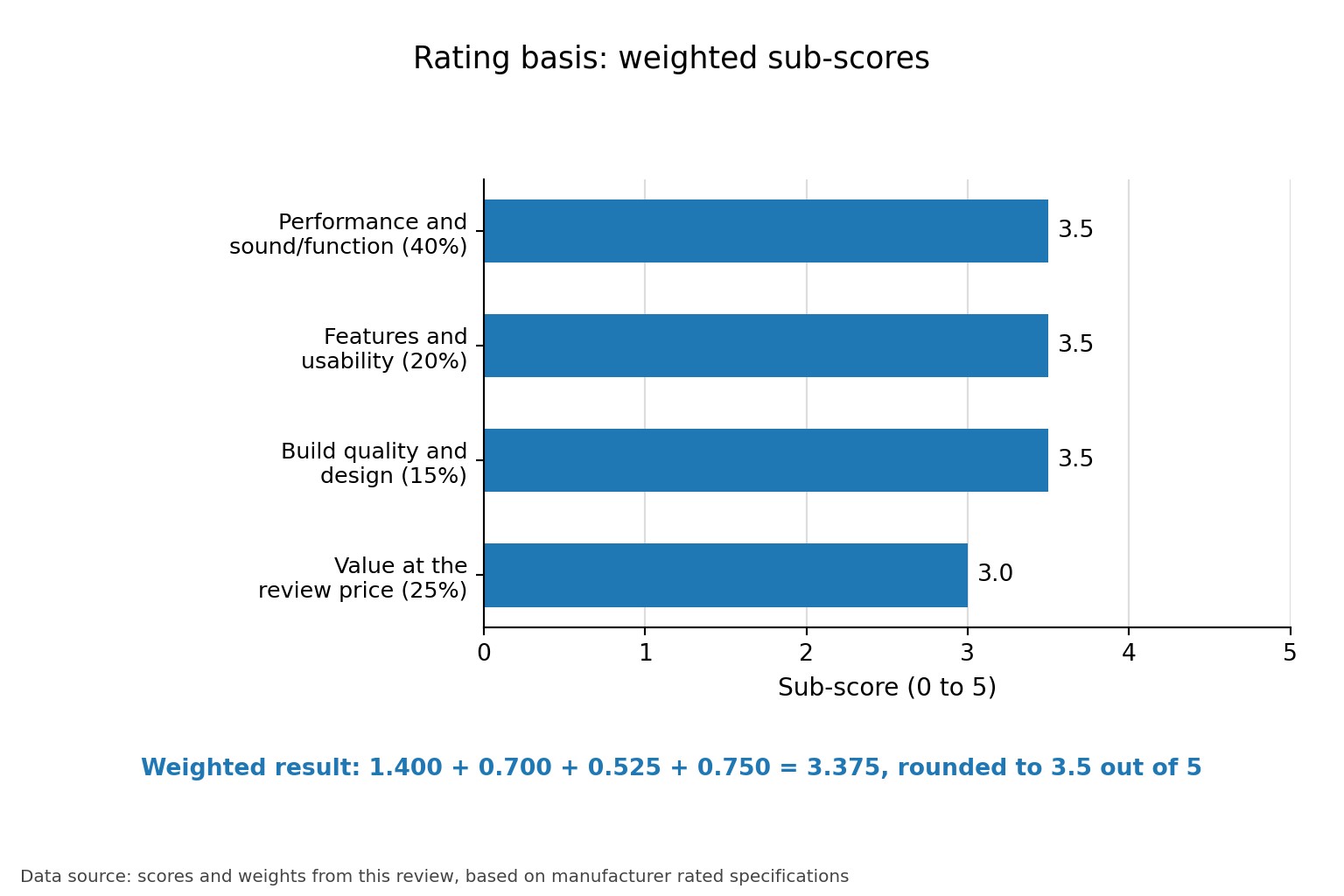

Alpine S-A32F rating explained

Area	Weight	Score	Contribution
Performance and sound/function	40%	3.5	1.400
Features and usability	20%	3.5	0.700
Build quality and design	15%	3.5	0.525
Value at the review price	25%	3.0	0.750
Weighted result	100%	3.375, rounded to 3.5 out of 5

Our research score is based on the rated figures and documented details above. Performance earns 3.5 because Alpine publishes detailed distortion, noise and damping figures, though no independent measurements exist. Features earn 3.5 for speaker-level input with remote sensing and three-channel use, offset by the missing pass-through and bass boost. Build earns 3.5 for the compact chassis and thermal protection. Value is held at 3.0 because no price is confirmed and the model is discontinued.

Sources and further reading

• Alpine S-A60M/S-A32F/S-A55V owner’s manual: power, distortion, noise, crossover, wiring, fuse and dimension specifications.
• Pacific Stereo product page: Alpine’s product copy stating the amplifier is discontinued.
• Autopro Alpine specification page: power requirement range and cable sizes.
• Onlinecarstereo product page: box contents and protection circuit description.
• Alpine S2-A36F product page: ratings, features, dimensions and price of the next-generation model.
• Rockford Fosgate R2-300X4 product page: ratings and features of that model.
• Kenwood eXcelon XR401-4 at Crutchfield: ratings, inputs and dimensions for that model.
• HyperPhysics AWG wire table: copper resistance values used in the wire-loss calculation.
• CTA-2006-D standard page: how in-vehicle amplifier power is measured.
