Alpine · HDZ-653
Alpine HDZ-653 Review: Hi-Res 3-Way Set With Trade-Offs
Research-based review of the Alpine HDZ-653 Status 6.5-inch 3-way component set: specs, install notes, price context, Focal and JL rivals, and who should buy.
Pros
- Carbon composite cones on woofer, midrange and tweeter for a matched driver family
- Rated 55 Hz to 40 kHz at 4 ohms with a 100 W RMS system rating
- Separate 3.5-inch midrange driver with passive crossovers included in the box
- Woofer depth of 66.9 mm and cutouts of 142 mm and 78.8 mm are published for installers
- Grilles, crossovers and installation hardware are listed as included
- Retail customer reviews average 4.5 out of 5 from 8 Crutchfield reviews
Cons
- 88 dB sensitivity is below the Focal PS 165 F3E (90.5 dB) and the JL C5-653 (about 92.5 dB)
- Custom-fit design needs mounting locations for the midrange and tweeter on each side
- Power rating and warranty apply only when wired through the supplied passive network
- List price of $1,199.95 is well above the JL C5-653's $799.99 MSRP
- No independent measurements found, and third-party listings disagree on frequency response
Specifications
| Crossover | Passive network supplied, one per side; direct wiring voids warranty |
|---|---|
| Frequency response | 55 Hz to 40 kHz (manufacturer claim, no tolerance stated) |
| Hi-Res claim | Manufacturer lists Hi-Res Audio certified up to 40 kHz |
| Impedance | 4 ohms |
| In the box | 2 woofers, 2 woofer grilles, 2 midranges, 2 midrange grilles, 2 tweeters, 2 crossovers, hardware, manual |
| Launch and list price | Shipping from September 2022; MAP $999.95 at launch; Alpine list price $1,199.95 |
| Midrange | 3-1/2 in (8.9 cm) carbon cone |
| Midrange mounting | Depth 38.9 mm (1-9/16 in); cutout 78.8 mm (3-1/8 in) |
| Power handling | 100 W RMS, 300 W peak (in 3-way system with supplied network) |
| Recommended amplification | Up to 100 W RMS per channel |
| Sensitivity | 88 dB SPL (2.83 V at 1 m) |
| Tweeter | 1-1/4 in (3.2 cm) carbon cone; about 70 mm ring-radiator housing per distributors |
| Type | 6.5-inch 3-way component speaker set (Status Hi-Res series), custom-fit |
| Woofer | 6-1/2 in (16.5 cm) carbon cone, double gathered edge surround |
| Woofer mounting | Depth 66.9 mm (2-3/4 in); cutout 142 mm (5-5/8 in) |
Verdict
The Alpine HDZ-653 suits custom installers with clean amplifier power or a DSP who want a wide-bandwidth, carbon-cone 3-way front stage. Its main strength is a 55 Hz to 40 kHz claimed range with a 100 W RMS rating; its main compromises are 88 dB sensitivity, a custom-fit install and no independent test data. At $899.95 on Amazon against a $1,199.95 list price, the discount is what makes the value case.
The Alpine HDZ-653 is a 6.5-inch 3-way component speaker set from Alpine's Status series, built around carbon composite cones, a separate 3.5-inch midrange driver and supplied passive crossovers. Whether it is worth buying depends on your installation. It is a custom-fit set, it needs a capable amplifier because its 88 dB sensitivity is lower than both rival kits compared below, and it makes most sense at discounted prices such as $899.95 on Amazon against Alpine's $1,199.95 list price. Alpine began shipping it in September 2022, and no direct replacement appears in the sources checked. A slim-fit, factory-fit sibling called the HDZ-653S exists, so make sure you order the model you actually want.
Alpine HDZ-653 design and build
Each side of the set has a 6.5-inch (16.5 cm) woofer, a 3.5-inch (8.9 cm) midrange and a 1.25-inch (3.2 cm) tweeter, all with carbon composite cones that Alpine says give the system a unified tonal character. The woofer uses Alpine's double gathered edge surround, which the company says keeps distortion low and cone movement linear. European distributors describe the tweeter as a ring radiator in a housing about 70 mm across, and one US owner review also describes the tweeters as just over 2 inches wide, which matches. Retailer descriptions mention neodymium magnets on the midrange and tweeter, though Alpine's own page does not.
The manual lists the woofer at 66.9 mm (2-3/4 in) deep with a 142 mm (5-5/8 in) cutout, and the midrange at 38.9 mm (1-9/16 in) deep with a 78.8 mm (3-1/8 in) cutout. Each of the two crossover networks measures roughly 183 x 128 x 50 mm from the manual's drawing. A US retailer lists the box contents as two woofers, two woofer grilles, two midranges, two midrange grilles, two tweeters, two crossovers, installation hardware and a manual. A distributor also lists threaded tweeter mounting rings and screws. The weight of the full set is not confirmed.
Features, crossover and wiring rules
This is a passive component system, so there are no electronics, apps or connectivity. Alpine calls the HDZ-653 a custom-fit model for custom applications, as opposed to its factory-fit models, so expect to build or find mounting locations for the midrange and tweeter. The supplied network divides the signal three ways. One European retailer describes the network as offering midrange level settings of 0 and -3 dB and tweeter level settings of +3, 0 and -3 dB, though Alpine's pages do not list these steps, so they are treated as unconfirmed.

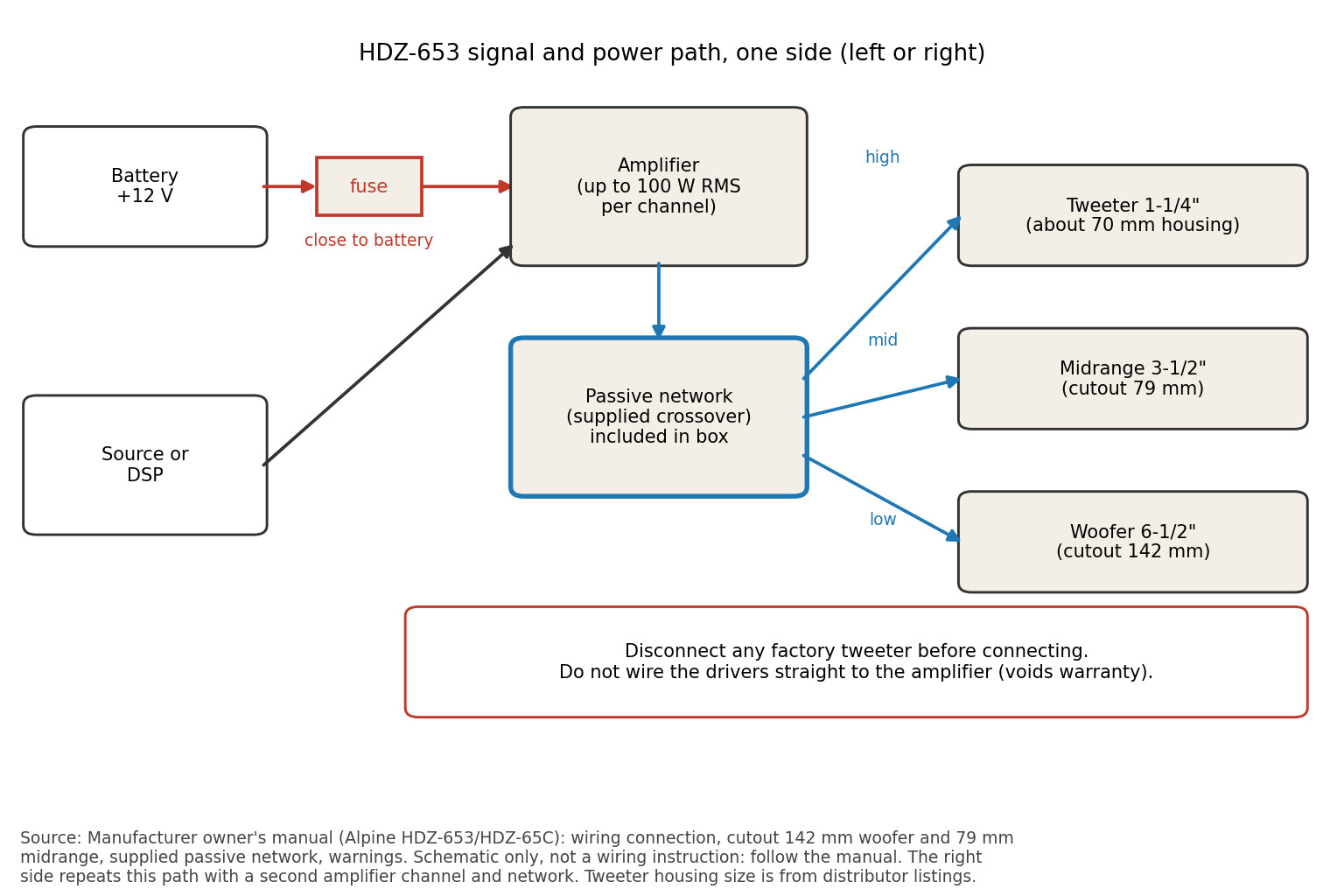

The manual carries two warnings that matter. First, the rated power applies to the three-way system connected through the supplied passive network, and connecting individual drivers straight to an amplifier voids the warranty. Second, if the car already has a tweeter in the same channel, it must be disconnected, because leaving both connected in parallel can cause a fault.
Rated sound performance and sensitivity

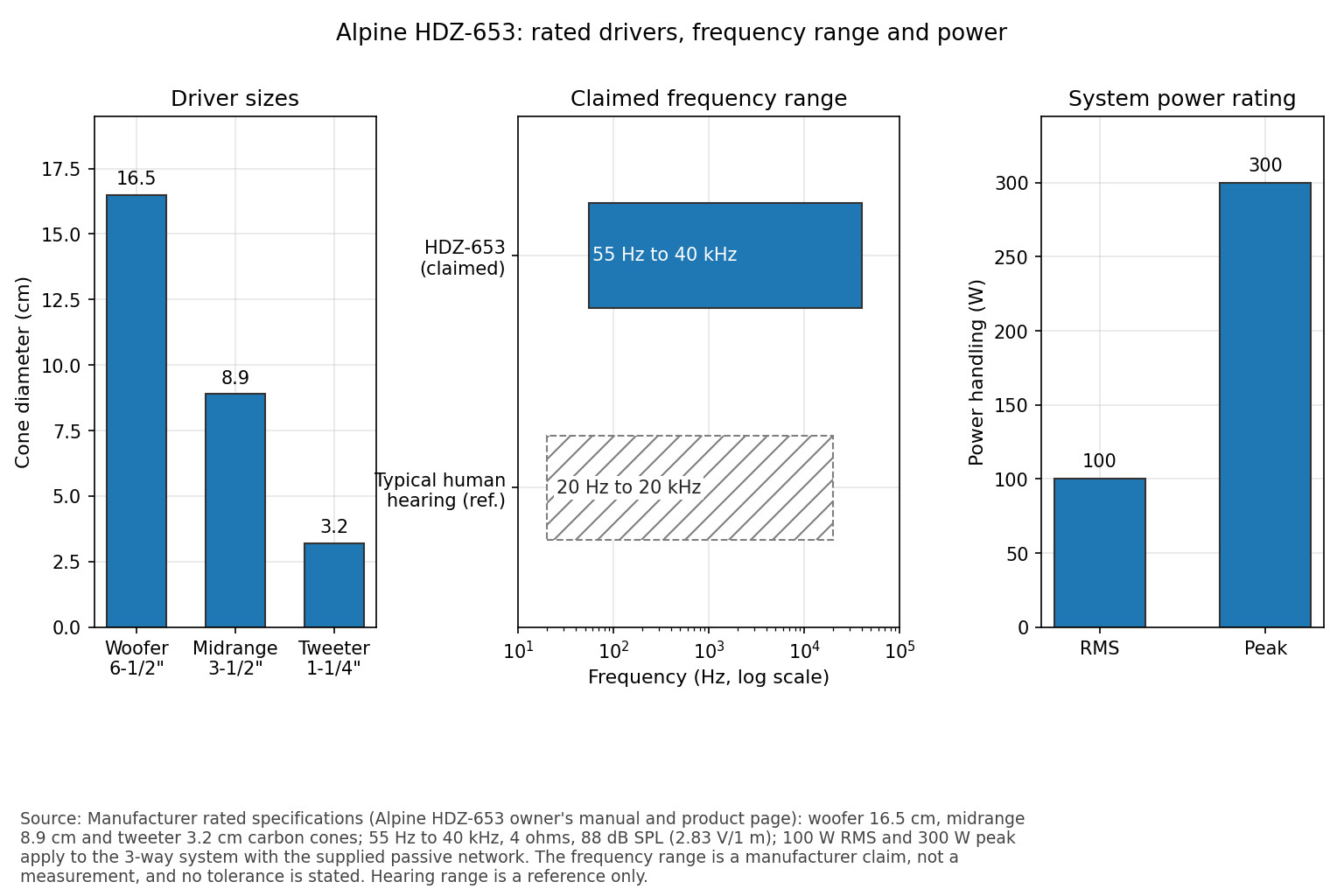

Alpine rates the set at 55 Hz to 40 kHz, 4 ohms, 88 dB SPL at 2.83 V and 1 m, and 100 W RMS (300 W peak) in the three-way system, and it recommends amplification of up to 100 W RMS per channel. The frequency range is a manufacturer claim with no stated tolerance, and several third-party listings give different low-frequency limits (65 Hz or 20 Hz), which are not used here.
Alpine markets the set as Hi-Res Audio certified up to 40 kHz and says a complete Status system can achieve 192 kHz/24-bit playback. Speakers do not have sample rates, so that second claim describes Alpine's full digital chain rather than anything the speakers do alone. Both are best read as marketing. Whether extra bandwidth above 20 kHz is audible in a car is also a contested question. The more practical figure is sensitivity. At 88 dB the Alpine trails the Focal PS 165 F3E (90.5 dB) and, once converted to the same test condition, the JL Audio C5-653 (about 92.5 dB). At each kit's rated RMS power the calculated peak output at 1 m is about 105.0 dB for the Alpine, 106.5 dB for the Focal and 108.2 dB for the JL, before power compression and cabin effects.
Owner feedback is positive but thin. Retailer Crutchfield shows 8 customer reviews averaging 4.5 out of 5, including one owner who found the sound clearer than a previous Morel set and another who praised how it performed with minimal tuning. A car audio forum thread describes the Status line as weighted toward clarity and detail. The Amazon listing shows 3.1 out of 5 from just two ratings. These are anecdotes from small samples, not test results.
Installation and amplifier requirements
Plan this as a front-stage upgrade with its own amplifier or a processor-driven system, since the manual recommends up to 100 W RMS per channel and the 88 dB sensitivity rewards power. Browse car amplifier reviews for matching options. Check that the woofer's 66.9 mm depth clears the window mechanism and door skin, and find locations for the 79 mm midrange and the tweeter before cutting anything.
Safety notes: disconnect the battery before working on amplifier power wiring, fit a fuse close to the battery on the main feed, and keep speaker and power wiring away from moving door parts. Check for airbag and side-impact components before cutting door panels. Use the supplied crossovers, because connecting a tweeter or midrange directly to an amplifier can damage it and voids the warranty. Keep volume sensible, since a car cabin can reach levels that harm hearing over time.
Alpine HDZ-653 vs Focal PS 165 F3E vs JL Audio C5-653
The closest rivals that could be verified are two other 6.5-inch 3-way kits: the Focal PS 165 F3E, and the JL Audio C5-653, which is cheaper at list price. None is an exact match, so treat the comparison as a guide to trade-offs. More options are in the component speakers category, and the DLS Iridium 6.3 guide covers another 6.5-inch 3-way set.
| Item | Alpine HDZ-653 | Focal PS 165 F3E | JL Audio C5-653 |
|---|---|---|---|
| Price | $899.95 (Amazon listing); $1,199.95 Alpine list | $999.99 (US retailer, in stock 12 Oct 2026) | $799.99 MSRP (trade-magazine review); current price not confirmed |
| Drivers | 6.5" woofer, 3.5" midrange, 1.25" tweeter, carbon cones | 6.5" flax woofer, 3" midrange, inverted-dome tweeter | 6.5" woofer, 4" midrange, 0.75" silk dome tweeter |
| RMS / peak power | 100 W / 300 W (in system) | 80 W / 160 W | 75 W / 225 W (25-75 W RMS range) |
| Sensitivity | 88 dB (2.83 V/1 m) | 90.5 dB (2.83 V/1 m) | 89.5 dB (1 W/1 m), about 92.5 dB at 2.83 V (calculated) |
| Impedance | 4 ohms | 4 ohms | 4 ohms (system nominal) |
| Frequency range | 55 Hz to 40 kHz (claimed) | 60 Hz to 28 kHz | 48 Hz to 25 kHz, plus or minus 3 dB |
| Crossover adjustment | Midrange and tweeter levels (steps per retailer description) | Tweeter and midrange levels (steps not confirmed) | 4-position tweeter, 3-position midrange |
| Woofer depth and cutout | 66.9 mm deep, 142 mm cutout | Not confirmed (sources conflict) | Not confirmed |

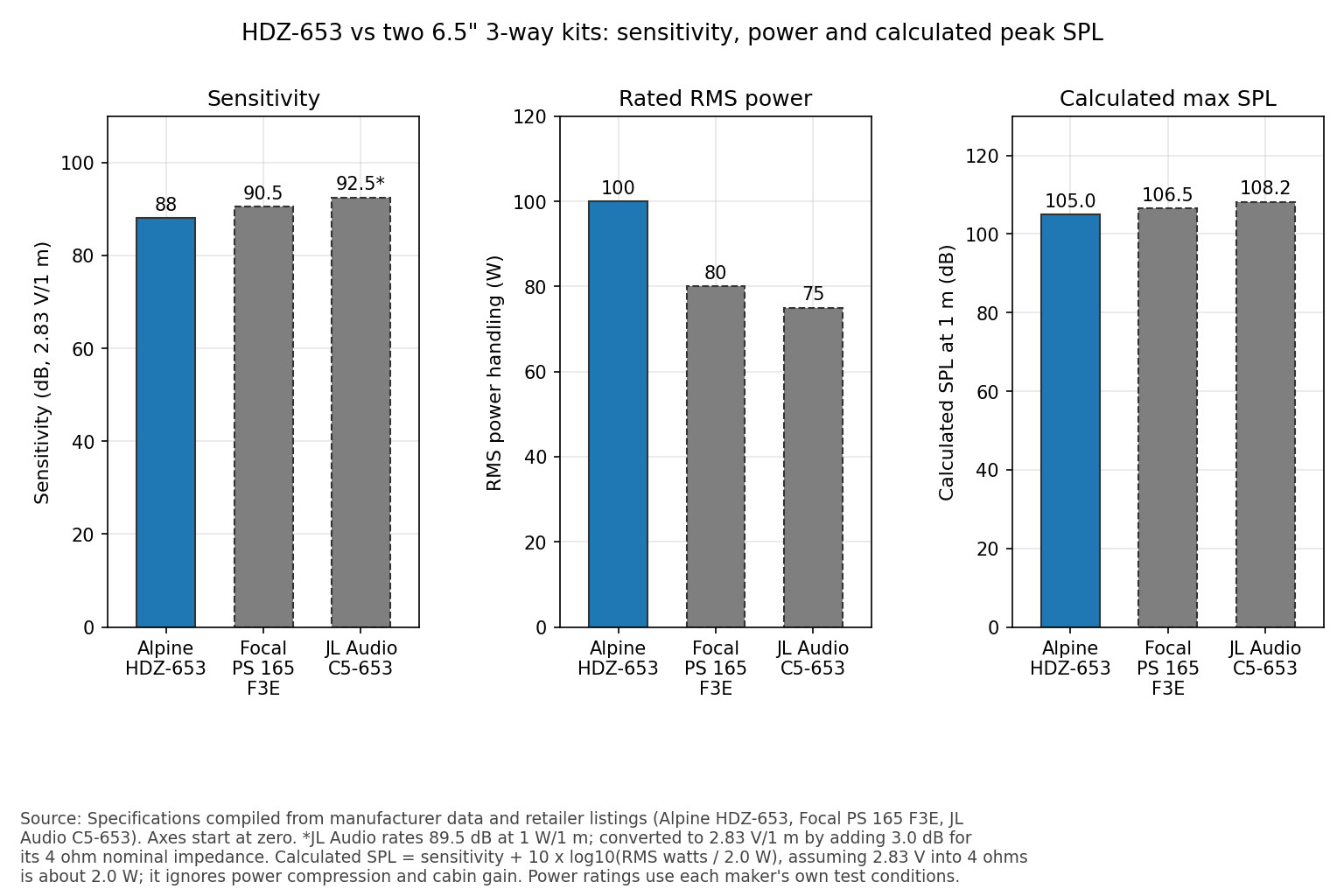

The Alpine has the highest power rating and the widest claimed bandwidth of the three, but the lowest sensitivity, so it needs the most amplifier power to reach the same level. The Focal and JL give up the Alpine's 40 kHz claim but ask for less power. The JL's list price is the lowest, though a current street price is not confirmed.
Who should buy the HDZ-653 and who should skip it
It suits installers and enthusiasts building a custom 3-way front stage who have clean amplifier power or a DSP, locations for three drivers per side, and a preference for Alpine's carbon-cone approach. It also suits owners already running Alpine Status electronics who want a matching speaker set.
Skip it if you want drop-in factory-fit speakers (consider the HDZ-653S instead), plan to run it from a head unit's built-in amplifier, or want a proven independent test record before spending around $900. If you only need a simpler 2-way, Alpine's HDZ-65C is a cheaper option in the same series.
Alpine HDZ-653 price and where to buy
Alpine lists the HDZ-653 at $1,199.95 and set a minimum advertised price of $999.95 at launch in 2022. The Amazon listing showed $899.95 on 12 October 2026, which is a 25% saving on the $1,199.95 list price. Prices change often, so check the current listing. One US specialty retailer showed it out of stock at $1,199.95, so availability and price vary. Before buying, confirm that you are looking at the HDZ-653 and not the HDZ-653S or a bundle that includes an amplifier, that the seller is Amazon or an authorized Alpine dealer so the warranty is valid, and that crossovers, grilles and hardware are included. The Amazon page's details table also lists attributes that do not apply to passive component speakers, such as remote control and coaxial connectivity, so rely on Alpine's specifications instead. You can check the current Amazon listing here (affiliate link). Budget for an amplifier, speaker wire, sound deadening and installation. The warranty length is not confirmed.
Final verdict and score

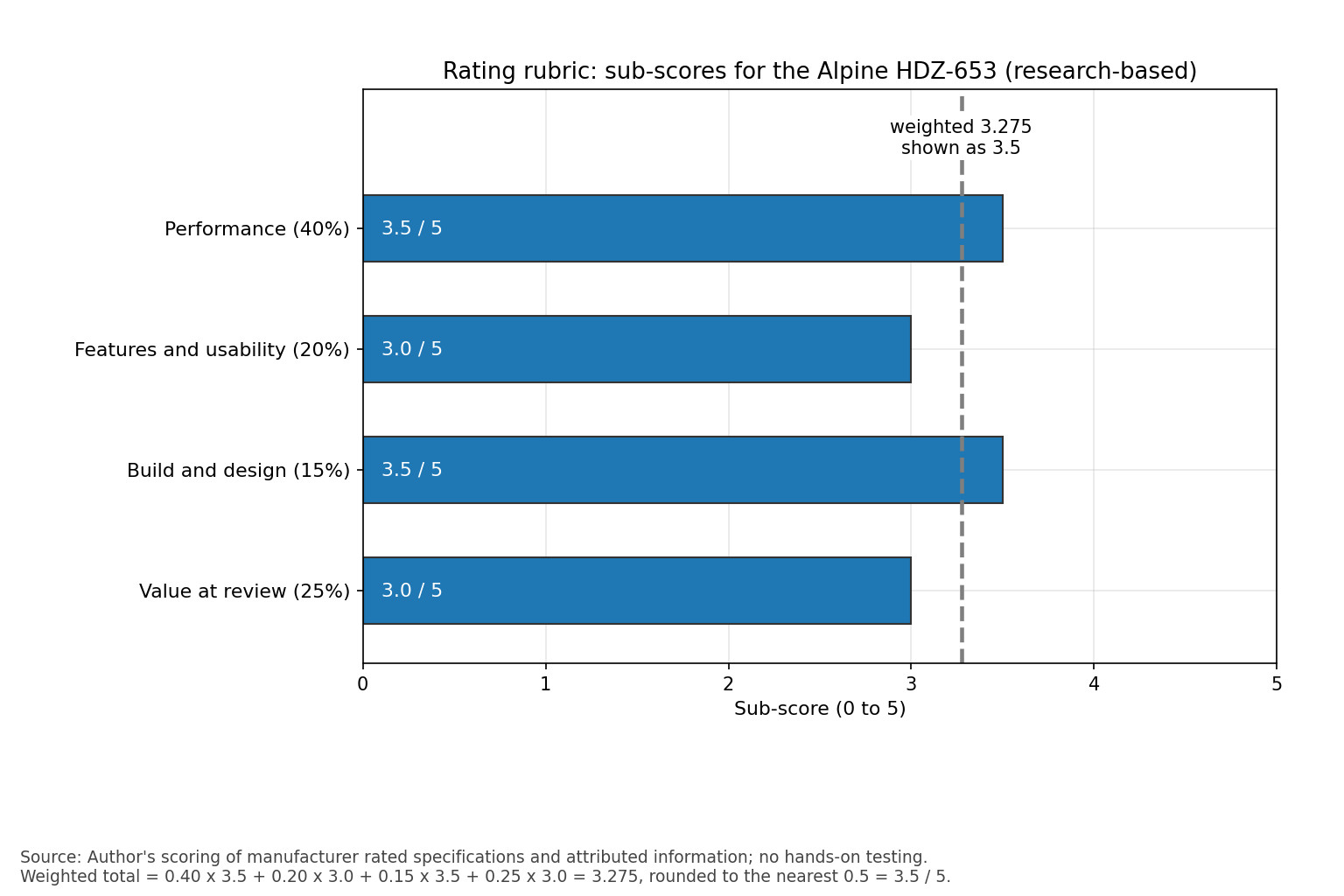

The Alpine HDZ-653 scores 3.5 out of 5. The score uses four weighted categories: performance (40%), features and usability (20%), build and design (15%) and value at the review price (25%). Scores are specification-based: they come from the rated figures, documented fitment details and attributed owner feedback described above. The weighted result is 3.275, which rounds to 3.5.
| Category | Weight | Score (0 to 5) | Why |
|---|---|---|---|
| Performance and function | 40% | 3.5 | Wide claimed bandwidth and 100 W RMS rating, but lower sensitivity than rivals and no independent measurements |
| Features and usability | 20% | 3.0 | Adjustable crossovers and full hardware, but a custom-fit install, an amplifier requirement and wiring restrictions |
| Build and design | 15% | 3.5 | Carbon cones throughout and a documented depth and cutout, with limited independent evidence of long-term quality |
| Value at review price | 25% | 3.0 | A discounted price helps, but list price is high next to rivals and support details are unconfirmed |
Some links on this page are affiliate links; they never affect our ratings. As an Amazon Associate I earn from qualifying purchases.
Sources and further reading
- Alpine USA, HDZ-653 product page
- Alpine, HDZ-653 and HDZ-65C owner's manual (specifications, dimensions, warnings)
- Mobile Electronics, Alpine HDZ-653 launch announcement (September 2022)
- World Wide Stereo, HDZ-653 listing (box contents, list price)
- Crutchfield, HDZ-653 customer reviews (anecdotal)
- DIY Mobile Audio forum thread on the HDZ-653 (anecdotal)
- Sound of Tristate, Focal PS 165 F3E listing
- PAS magazine, JL Audio C5-653 review
- AVmall, JL Audio C5-653 specifications
Alpine HDZ-653 FAQ
Is the Alpine HDZ-653 worth buying?
It is worth considering if you want a custom 3-way front stage and have clean amplifier power. It rates 55 Hz to 40 kHz and 100 W RMS, but its 88 dB sensitivity is lower than the Focal PS 165 F3E and JL Audio C5-653. The value case rests on the discounted price, because Alpine's list price is $1,199.95.
Do I need an amplifier for the HDZ-653?
Almost certainly. Alpine recommends up to 100 W RMS per channel and the set is rated 88 dB at 2.83 V, so it benefits from real power. A head unit's built-in amplifier will usually deliver much less than that.
Will the HDZ-653 fit my factory speaker openings?
It is a custom-fit model, so it is not designed as a drop-in replacement. The woofer needs a 142 mm cutout and 66.9 mm depth, and the midrange and tweeter need their own locations. Alpine's factory-fit sibling is the HDZ-653S.
What does Hi-Res Audio mean for a speaker?
For speakers it refers to the frequency range, here a claimed 55 Hz to 40 kHz. Speakers do not have sample rates, so Alpine's 192 kHz/24-bit statement describes its full digital system. Whether the extra high-frequency range is audible in a car is debated.
Can I connect the drivers directly to an amplifier?
No. Alpine's manual says the power rating applies to the system connected through the supplied passive network, and connecting drivers directly to an amplifier voids the warranty. If your car has a factory tweeter in the same channel, disconnect it first.
What comes in the box?
A US retailer lists two woofers, two woofer grilles, two midranges, two midrange grilles, two tweeters, two crossovers, installation hardware and a manual. A distributor also lists tweeter mounting rings and screws. Check the listing you buy from, because bundles with amplifiers also exist.
Is there a newer or smaller version?
I found no direct successor. The HDZ-653S is a slim-fit, factory-fit variant released in December 2022, and the HDZ-65C is a 2-way set in the same series. Confirm the exact model number before ordering.
How loud can the HDZ-653 get?
A calculation from its 88 dB sensitivity and 100 W RMS rating gives about 105.0 dB at 1 m. That is a theoretical figure that ignores power compression and cabin effects. The Focal and JL kits calculate to about 106.5 dB and 108.2 dB at their own RMS ratings.
